Details

DESCRIPTION:

1) Material: UPVC

2) Size: 1/2'' - 4''; 20mm - 110mm; DN15 - DN100 ;

3) Standard: ANSI, DIN, JIS ;

4) Joint End: Socket, Threaded (NPT, BSPT, BSPF) ;

5) Seat - TPV; ORING - EPDM ;

6) Operating Temperature: UPVC(0~55℃)

ADVANTAGES:

1) Enhanced hermeticity by unique designs ;

2) Replaceable ergonomic handle ;

3) Materials meet drinking water standard ;

4) Smooth opening & closing thanks to a lower torque ;

5) 100% pure virgin material, CaCO3 free (Chalk) ;

6) UV resistant powder added ;

7) 100% pressure testing before leaving the factory ;

INTRODUCTION :

Destar Multi Functional Compact Ball Valves are updated version of normal compact ball valve, with enhanced hermeticity by unique designs, handle is replaceable, and smooth opening and closing with a lower torque.

The most prominent feature is the long socket end could be used for 2 different sizes, the I.D. socket can be glued to UPVC Pipe, and the O.D. socket can be glued to UPVC Fitting as well !

And Sizes are available from 1/2''(DN15) to 4''(DN100) . They can be either straight valves or incorporate a tee to help change the direction of flow.

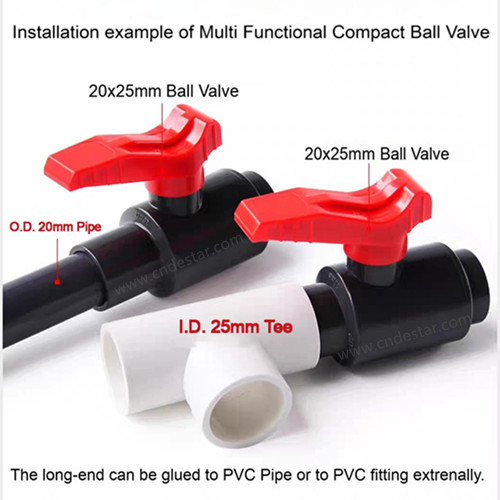

INSTALLATION OF MULTI FUNCTIONAL BALL VALVE :
